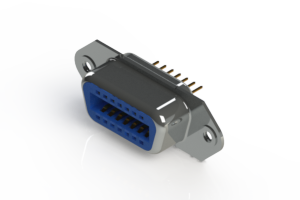

EDAC B57 connectors are parallel port interfaces fully compatible with all industry standards. Ribbon style contacts are utilized along with board locks for superior mating and retention forces. Both board receptacle and male plug cable versions are available.
Parallel Port D-Sub Connectors Series
Series |
Description |
|---|---|
B57 Series
|
D-Sub Connectors | Parallel Port | Can be used with 0.062" (1.57mm), 0.093" (2.36mm) or 0.125" (3.125mm) board thickness |
parallel port D-sub connector
Parallel port D-sub connectors are compatible with all industry standards. For better mating and retention forces, the ribbon style contact and boardlocks are used.
Engineering options

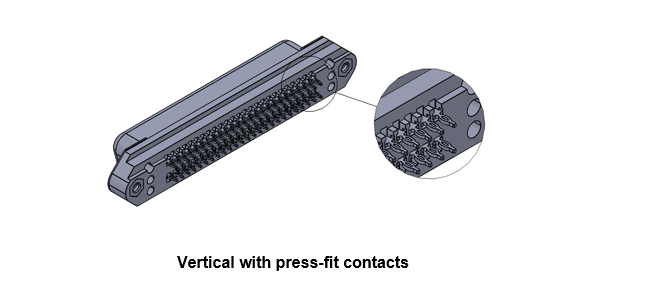

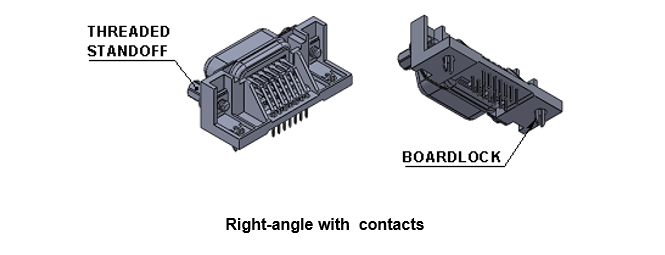

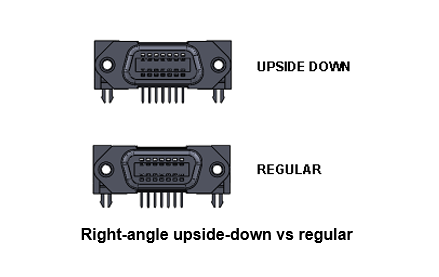

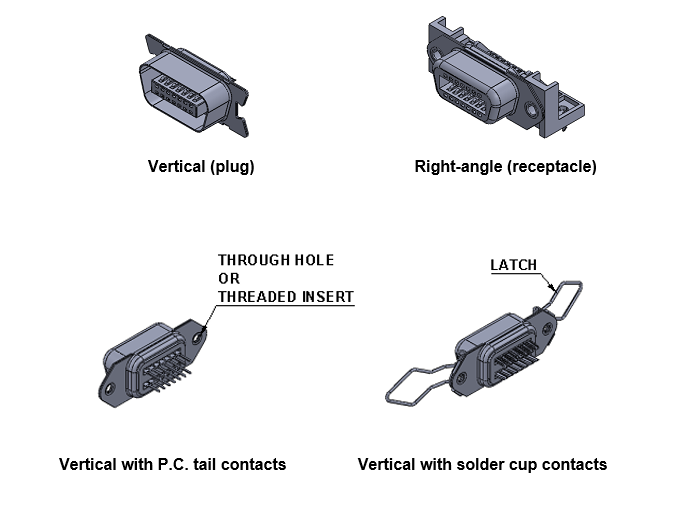

Parallel port D-sub connectors are available in vertical or right-angle orientations, with blue or black insulators. Three contact termination options (P.C. tail, solder cup or press-fit) are common. Many mounting options for panel mount or connector mating are available including through hole, threaded holes, with or without standoffs, and with or without boardlocks, they can also be supplied with or without latches. Right-angle connectors are available in regular or ‘upside-down’ versions.
We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
