Products / Wire to Wire / E-Seal

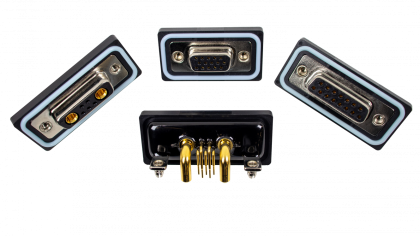

E-Seal


    • E-seal uses a Proprietary epoxy sealing process through which seals the entire back of the connector rather than at individual pins. This provides for complete sealing with an impeccably smooth finish and guarantees no water ingress as fully tested to IP67 standards
    • Full range of D-subs from DB 9 right through to a maximum of 78 positions available
    • Standard and high density footprints are readily available in vertical or right angle orientations. Plating options vary from gold flash to 30u” of gold and include a wide variety of mounting options
    • Combo Power D-subs which can carry up to 20 amps on the Power pins
    • USB Type A and B wire to wire use quarter turn twist and lock over mold and O-ring for the perfect seal every time
    • USB Micro B saves valuable board space and provides maximum cable retention. Fully epoxy sealed at rear plus a custom O-Ring reliably seals the shell to panel
    • IP67 Waterproof HDMI cable connectors with quarter turn twist and lock over mold and O-ring provide for a rugged waterproof connection in all outdoor video applications
    • Seal up your design with E-seal your best waterproof solution…..

    D-Sub Standard Density

    D-Sub High Density

    D-Sub Power Combo

    IP67 Waterproof USB & HDMI

    Plug and Socket - 560 Series

    Plug and Socket - 566 Series

    Plug and Socket - 567 Series

    Plug and Socket - 568 Series

    Plug and Socket - 572 Series
