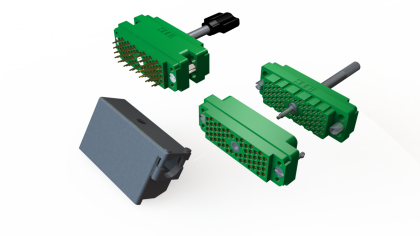

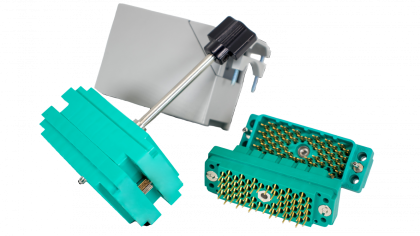

Rack and Panel Connectors

Rack and Panel Connectors

Highlights

  • Industry standard connector with highly dependable contacts.
  • Hermaphroditic contact design for no-fail interconnections
  • 100% fit, form and function alternative to Elco 8016 series
  • Gold over nickel plating for wire hole, PCB, wire-wrap and crimp contacts
  • Crimp contacts available pre-installed, separately in bulk or on a reel for automated process
  • In sizes of 20 to 120 positions, with actuating screw or locknut both with polarising hardware
  • Plastic and metal covers with cable clamps for strain relief

INTERCONNECT BROCHURE





Rack and Panel Connectors

RACK AND PANEL CONNECTORS

Series

Description

516 Series

516
Rack and Panel Connectors | .150" (3.81mm) Contact Spacing x .130" (3.30mm) or .150" (3.81mm) Row Spacing with staggered Grid

519 Series

519
Rack and Panel Connectors | .150" (3.81mm) Contact Spacing x .150" (3.81mm) Row Spacing Suitable For Automatic Wire Wrapping

556 Series

556
Rack and Panel Connectors | .156" (3.96mm) Contact Spacing

B01 Series

B01
Rack and Panel Connectors | Accepts 0.062(1.57) and 0.093(2.36) board thickness

B57 Series

B57
Rack and Panel Connectors | Can be used with 0.062" (1.57mm), 0.093" (2.36mm) or 0.125" (3.125mm) board thickness
