Machined D-Sub Connectors

Machined D-Sub Connectors

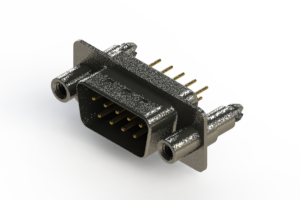

The EDAC D-PIN family of D-Subminiature connectors are manufactured using precision machined contacts available from 9 to 62 positions. Standard and high density, with vertical and right angle body styles available. A number of mounting and contact plating options are available. The 5 amp current rating along with a wide operating temperature range provides for use in rugged environments





Machined D-Sub Connectors Brochure:

Interconnect Solutions Brochure:



Machined D-Sub Connectors Series

Series

Description

621M Series

621M
D-Sub Connectors | Machined Pins | 0.283" (7.20mm) Footprint Right Angle Bend | Plug

622M Series

622M
D-Sub Connectors | Machined Pins | 0.283" (7.20mm) Footprint Right Angle Bend | Receptacle

627M Series

627M
D-Sub Connectors | Machined Pins | 0.109" (2.77mm) Contact Spacing x 0.112" (2.84mm) Row Spacing | Vertical | Plug

628M Series

628M
D-Sub Connectors | Machined Pins | .109"(2.77mm) Contact Spacing x .112"(2.84mm) Row Spacing | Vertical | Receptacle

629M Series

629M
D-Sub Connectors | Machined Pins | Two Contact Rows with .370"(9.40mm) Footprint Right Angle Bend | Plug

630M Series

630M
D-Sub Connectors | Machined Pins | 0.370" (9.40mm) Footprint Right Angle Bend | Receptacle

633M Series

633M
D-Sub Connectors | Machined Pins | High Density Three Contact Rows with 0.350" (8.89mm) Footprint Right Angle Bend | Plug

634M Series

634M
D-Sub Connectors | Machined Pins | High Density Three Contact Rows with 0.350" (8.89mm) Footprint Right Angle Bend | Receptacle

637M Series

637M
D-Sub Connectors | Machined Pins | High Density | 0.090" (2.29mm) Contact Spacing X 0.078"(1.98mm) Row Spacing | Vertical | Plug

638M Series

638M
D-Sub Connectors | Machined Pins | High Density | 0.090" (2.29mm) Contact Spacing X 0.078"(1.98mm) Row Spacing | Vertical | Receptacle




machined pin D-sub connector

Machined pin D-sub connectors are manufactured using high precision screw machined contacts. The 5 amp current rating along with a wide operating temperature range provides for use in rugged environments. Available in both standard and high-density versions.

Engineering options

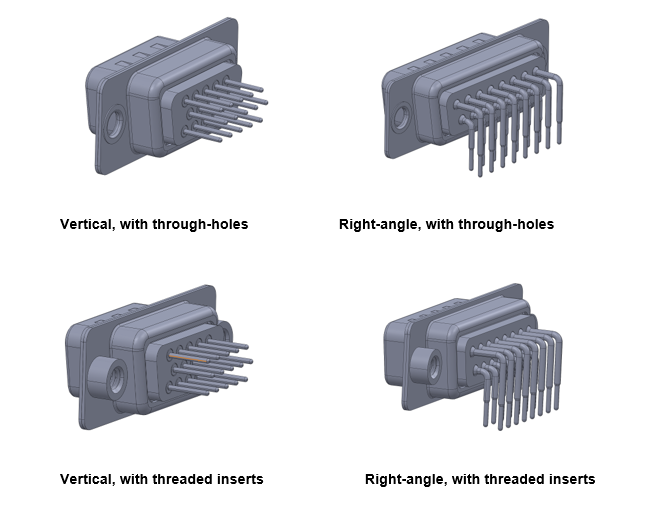

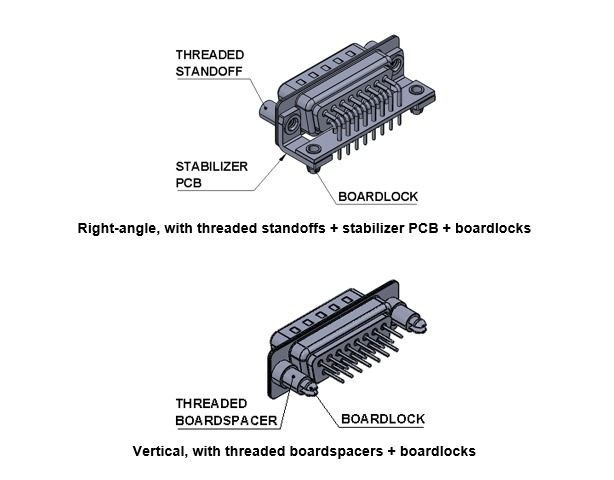

Machined pin D-sub connectors are available in right-angle or vertical orientations with many mounting options for panel mounting and connector mating, including through holes, threaded inserts, threaded standoffs, threaded inserts with boardlocks and removable threaded standoffs. The shell can be nickel or tin plated. (Shown below are a few examples of mounting options.) Insulation housings are available in different colors, including Black, White, Green, and Blue.

We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
