625 Series

Features

  • Two Contact Rows with .584"(14.84mm) Footprint Right Angle Bend
  • .109"(2.77mm) Contact Spacing X .112"(2.84mm) Row Spacing
  • Plug and Receptacle in 9, 15, 25, or 37 Contact Sizes
  • Pin and Socket Contact Mating Design with P.C. Tail Termination
  • Metal Shell Provides EMI/RFI Shielding, Plug Shell Indents provide Grounding and Additional Mating Retention

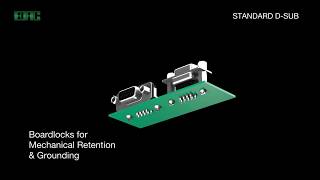

  • Board Mounting Features include Threaded Hole, Two and Three Prong Boardlock for Superior Retention to P.C. Board
  • Flange Mounting Options for Panel Mount or Connector Mating include Through Hole, Threaded Hole and Threaded Standoffs
  • D-Shaped Connector Mating Outline provides Polarization
  • Design based on Requirements of MIL-C-24038, EIA RS-232 and RS-449


Specifications

  • Insulator Material : Thermoplastic Polyester, UL 94V-0, Chemical Resistant, Color: Black
  • Contact Material : Plug (Pins): Copper Alloy Receptacle (Socket): Copper Alloy
  • Contact Plating : Selective Gold (See Ordering Code) over Nickel for the Mating Area, Tin Plating for Tail Area
  • Shell Material : Nickel Plated Steel
  • Current Rating : 3A Per Contact
  • Contact Resistance : 25 Milliohms MAX
  • Insulation Resistance : 5000 Megaohms MIN
  • Dielectric Voltage : 1000V AC rms at Sea Level
  • Operating Temp. : -55°C To +85°C
  • Mating Force : 16 oz (4.45N) Maximum Per Contact Position
  • Unmating Force : 1 oz (0.28N) Minimum Per Contact Position



Notes




D-Sub Connectors | Two Contact Rows with .584"(14.84mm) Footprint Right Angle Bend


OR

Loading Parts


Part #

Position

Gender

Material

Board Mounting Feature

Contact Plating

Contact Code

Flange Mounting Feature

2D PDF

3D STEP

625-015-262-000 - Right Angle D-Sub Connector
625-015-262-000 - Right Angle D-Sub Connector
625-015-262-000 15 Plug (Pin) Standard None Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-001 - Right Angle D-Sub Connector
625-015-262-001 - Right Angle D-Sub Connector
625-015-262-001 15 Plug (Pin) Standard None Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-002 - Right Angle D-Sub Connector
625-015-262-002 - Right Angle D-Sub Connector
625-015-262-002 15 Plug (Pin) Standard None Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-003 - Right Angle D-Sub Connector
625-015-262-003 - Right Angle D-Sub Connector
625-015-262-003 15 Plug (Pin) Standard None Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-005 - Right Angle D-Sub Connector
625-015-262-005 - Right Angle D-Sub Connector
625-015-262-005 15 Plug (Pin) Standard None Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
625-015-262-010 - Right Angle D-Sub Connector
625-015-262-010 - Right Angle D-Sub Connector
625-015-262-010 15 Plug (Pin) Standard .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-011 - Right Angle D-Sub Connector
625-015-262-011 - Right Angle D-Sub Connector
625-015-262-011 15 Plug (Pin) Standard .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-012 - Right Angle D-Sub Connector
625-015-262-012 - Right Angle D-Sub Connector
625-015-262-012 15 Plug (Pin) Standard .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-013 - Right Angle D-Sub Connector
625-015-262-013 - Right Angle D-Sub Connector
625-015-262-013 15 Plug (Pin) Standard .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-015 - Right Angle D-Sub Connector
625-015-262-015 - Right Angle D-Sub Connector
625-015-262-015 15 Plug (Pin) Standard .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
625-015-262-030 - Right Angle D-Sub Connector
625-015-262-030 - Right Angle D-Sub Connector
625-015-262-030 15 Plug (Pin) Standard Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-031 - Right Angle D-Sub Connector
625-015-262-031 - Right Angle D-Sub Connector
625-015-262-031 15 Plug (Pin) Standard Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-032 - Right Angle D-Sub Connector
625-015-262-032 - Right Angle D-Sub Connector
625-015-262-032 15 Plug (Pin) Standard Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-033 - Right Angle D-Sub Connector
625-015-262-033 - Right Angle D-Sub Connector
625-015-262-033 15 Plug (Pin) Standard Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-035 - Right Angle D-Sub Connector
625-015-262-035 - Right Angle D-Sub Connector
625-015-262-035 15 Plug (Pin) Standard Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
625-015-262-040 - Right Angle D-Sub Connector
625-015-262-040 - Right Angle D-Sub Connector
625-015-262-040 15 Plug (Pin) Standard Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-041 - Right Angle D-Sub Connector
625-015-262-041 - Right Angle D-Sub Connector
625-015-262-041 15 Plug (Pin) Standard Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-042 - Right Angle D-Sub Connector
625-015-262-042 - Right Angle D-Sub Connector
625-015-262-042 15 Plug (Pin) Standard Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-043 - Right Angle D-Sub Connector
625-015-262-043 - Right Angle D-Sub Connector
625-015-262-043 15 Plug (Pin) Standard Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-045 - Right Angle D-Sub Connector
625-015-262-045 - Right Angle D-Sub Connector
625-015-262-045 15 Plug (Pin) Standard Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
625-015-262-050 - Right Angle D-Sub Connector
625-015-262-050 - Right Angle D-Sub Connector
625-015-262-050 15 Plug (Pin) Standard #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-051 - Right Angle D-Sub Connector
625-015-262-051 - Right Angle D-Sub Connector
625-015-262-051 15 Plug (Pin) Standard #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-052 - Right Angle D-Sub Connector
625-015-262-052 - Right Angle D-Sub Connector
625-015-262-052 15 Plug (Pin) Standard #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-053 - Right Angle D-Sub Connector
625-015-262-053 - Right Angle D-Sub Connector
625-015-262-053 15 Plug (Pin) Standard #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-055 - Right Angle D-Sub Connector
625-015-262-055 - Right Angle D-Sub Connector
625-015-262-055 15 Plug (Pin) Standard #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
625-015-262-500 - Right Angle D-Sub Connector
625-015-262-500 - Right Angle D-Sub Connector
625-015-262-500 15 Plug (Pin) High Temp Insulator None Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-501 - Right Angle D-Sub Connector
625-015-262-501 - Right Angle D-Sub Connector
625-015-262-501 15 Plug (Pin) High Temp Insulator None Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-502 - Right Angle D-Sub Connector
625-015-262-502 - Right Angle D-Sub Connector
625-015-262-502 15 Plug (Pin) High Temp Insulator None Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-503 - Right Angle D-Sub Connector
625-015-262-503 - Right Angle D-Sub Connector
625-015-262-503 15 Plug (Pin) High Temp Insulator None Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-505 - Right Angle D-Sub Connector
625-015-262-505 - Right Angle D-Sub Connector
625-015-262-505 15 Plug (Pin) High Temp Insulator None Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
625-015-262-510 - Right Angle D-Sub Connector
625-015-262-510 - Right Angle D-Sub Connector
625-015-262-510 15 Plug (Pin) High Temp Insulator .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-511 - Right Angle D-Sub Connector
625-015-262-511 - Right Angle D-Sub Connector
625-015-262-511 15 Plug (Pin) High Temp Insulator .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-512 - Right Angle D-Sub Connector
625-015-262-512 - Right Angle D-Sub Connector
625-015-262-512 15 Plug (Pin) High Temp Insulator .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-513 - Right Angle D-Sub Connector
625-015-262-513 - Right Angle D-Sub Connector
625-015-262-513 15 Plug (Pin) High Temp Insulator .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-515 - Right Angle D-Sub Connector
625-015-262-515 - Right Angle D-Sub Connector
625-015-262-515 15 Plug (Pin) High Temp Insulator .120" (3.05mm) Through Hole Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
625-015-262-530 - Right Angle D-Sub Connector
625-015-262-530 - Right Angle D-Sub Connector
625-015-262-530 15 Plug (Pin) High Temp Insulator Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-531 - Right Angle D-Sub Connector
625-015-262-531 - Right Angle D-Sub Connector
625-015-262-531 15 Plug (Pin) High Temp Insulator Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-532 - Right Angle D-Sub Connector
625-015-262-532 - Right Angle D-Sub Connector
625-015-262-532 15 Plug (Pin) High Temp Insulator Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-533 - Right Angle D-Sub Connector
625-015-262-533 - Right Angle D-Sub Connector
625-015-262-533 15 Plug (Pin) High Temp Insulator Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-535 - Right Angle D-Sub Connector
625-015-262-535 - Right Angle D-Sub Connector
625-015-262-535 15 Plug (Pin) High Temp Insulator Two Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
625-015-262-540 - Right Angle D-Sub Connector
625-015-262-540 - Right Angle D-Sub Connector
625-015-262-540 15 Plug (Pin) High Temp Insulator Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-541 - Right Angle D-Sub Connector
625-015-262-541 - Right Angle D-Sub Connector
625-015-262-541 15 Plug (Pin) High Temp Insulator Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-542 - Right Angle D-Sub Connector
625-015-262-542 - Right Angle D-Sub Connector
625-015-262-542 15 Plug (Pin) High Temp Insulator Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-543 - Right Angle D-Sub Connector
625-015-262-543 - Right Angle D-Sub Connector
625-015-262-543 15 Plug (Pin) High Temp Insulator Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-545 - Right Angle D-Sub Connector
625-015-262-545 - Right Angle D-Sub Connector
625-015-262-545 15 Plug (Pin) High Temp Insulator Three Prong Boardlocks Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
625-015-262-550 - Right Angle D-Sub Connector
625-015-262-550 - Right Angle D-Sub Connector
625-015-262-550 15 Plug (Pin) High Temp Insulator #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Fixed Standoff
625-015-262-551 - Right Angle D-Sub Connector
625-015-262-551 - Right Angle D-Sub Connector
625-015-262-551 15 Plug (Pin) High Temp Insulator #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact .120" (3.05mm) Through Hole
625-015-262-552 - Right Angle D-Sub Connector
625-015-262-552 - Right Angle D-Sub Connector
625-015-262-552 15 Plug (Pin) High Temp Insulator #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Hole
625-015-262-553 - Right Angle D-Sub Connector
625-015-262-553 - Right Angle D-Sub Connector
625-015-262-553 15 Plug (Pin) High Temp Insulator #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact #4-40 Threaded Standoff
625-015-262-555 - Right Angle D-Sub Connector
625-015-262-555 - Right Angle D-Sub Connector
625-015-262-555 15 Plug (Pin) High Temp Insulator #4-40 Threaded Hole Gold Flash Plating .584" (14.84mm) Footprint Contact M3 Threaded Hole
